Google Signed-In Bots

A signed-in bot joins Google Meet as a real Google Workspace user, so it can join meetings that require a Google account and skip the lobby when it is on the calendar invite.

When to use a signed-in bot

Signed-in bots can’t bypass a policy that only admits people from the organizer’s own organization, unless the bot account belongs to that organization.

How it works

You create a small, dedicated Google Workspace that holds only bot accounts, and point its single sign-on (SSO) at MeetStream. MeetStream then acts as the SAML identity provider (IdP) for that Workspace: when a bot signs in with one of your bot accounts, Google hands the sign-in to MeetStream, and MeetStream answers with a response signed by the private key you uploaded. No passwords are stored or typed.

MeetStream only completes sign-ins for bots it launched with a registered login. Anyone else sent to the sign-in URL is refused.

Before you start

• A Google Workspace for a domain you use only for bot accounts. This guide uses example.com.
• A super administrator for that Workspace who is not one of the bot accounts. Google does not send super administrators to the third-party IdP when they sign in at admin.google.com, so this account keeps working after SSO is on (Google: super administrator SSO).
• One or more regular (non-admin) user accounts for the bots, for example notetaker@example.com. Give each the name and photo you want Meet to show.
• OpenSSL on your machine, to create the signing key and certificate.
• A MeetStream API key and access to the MeetStream dashboard.

Part 1: Set up Google Workspace

1

Create the bot accounts

In the Google Admin console of your bot Workspace, add a user for each bot login. The account’s first and last name become the name shown in Meet, and its profile photo becomes the bot’s avatar.

Plan one account per 30 bots you expect to run at the same time (see How many logins you need).

2

Generate a signing key and certificate

Run this once. It creates a private key (key.pem) and a self-signed certificate (cert.pem) valid for 10 years:

openssl req -x509 -newkey rsa:2048 -keyout key.pem -out cert.pem \
  -sha256 -days 3650 -nodes -subj "/CN=MeetStream Google SSO"

• cert.pem goes to Google (Part 1, step 5) and to MeetStream (Part 2, step 3).
• key.pem goes only to MeetStream. Keep it private.

Use this same pair for every bot account in the domain: Google checks every sign-in against the one certificate in your SSO profile.

3

Open the SSO settings

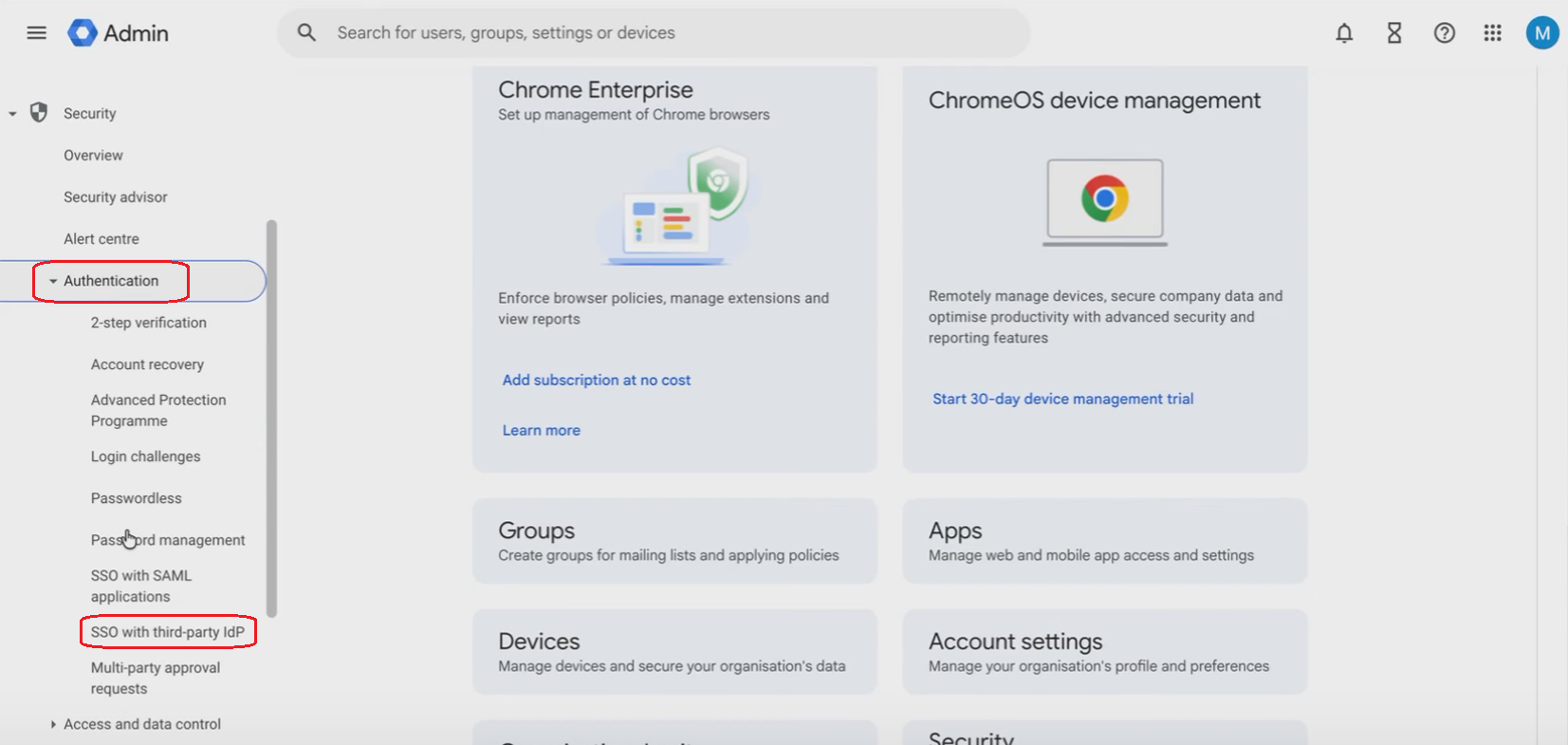

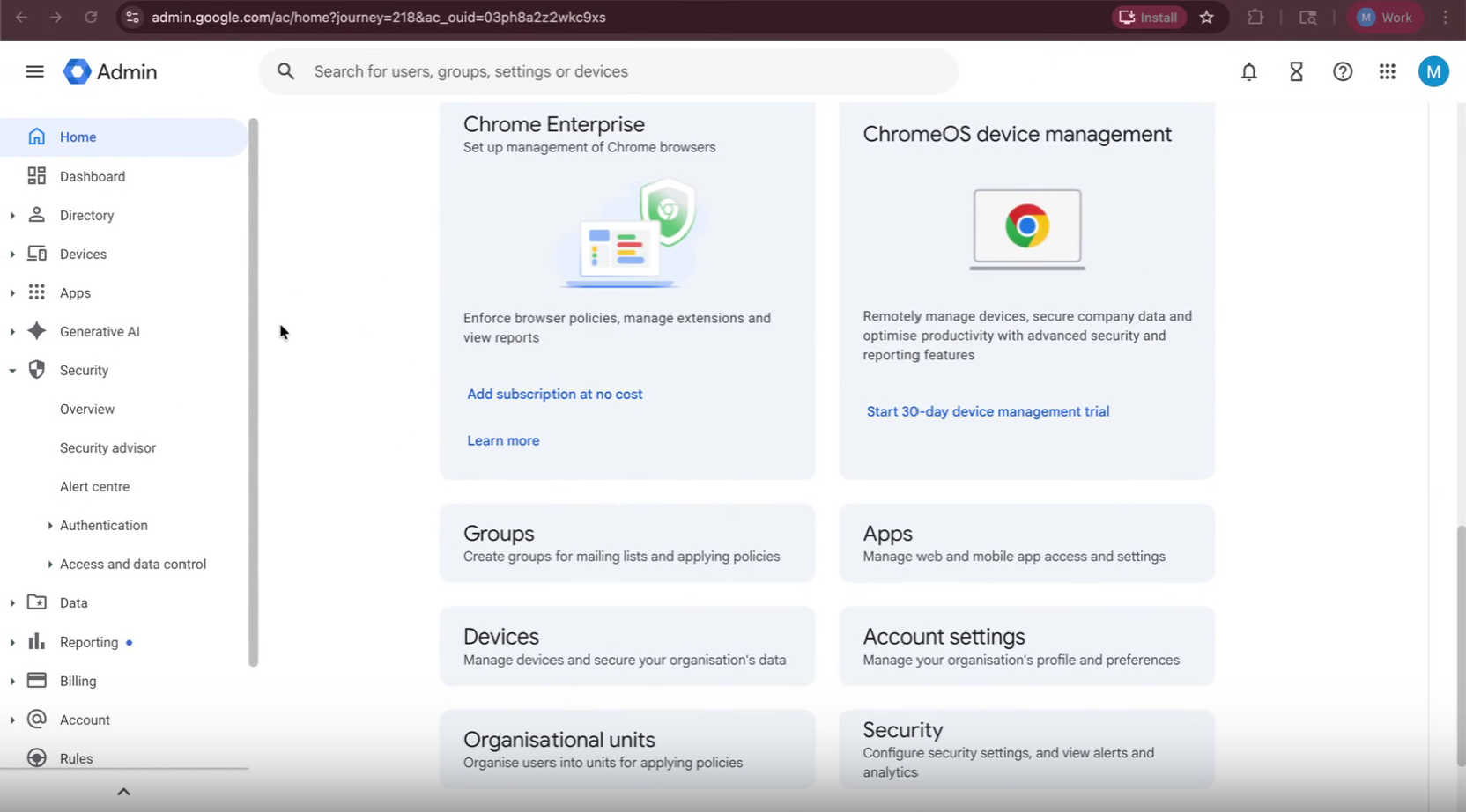

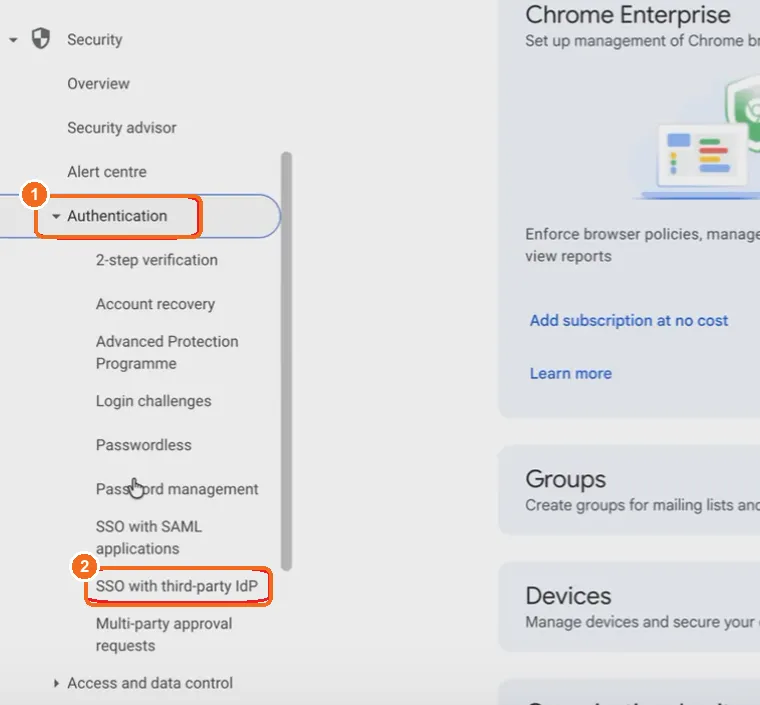

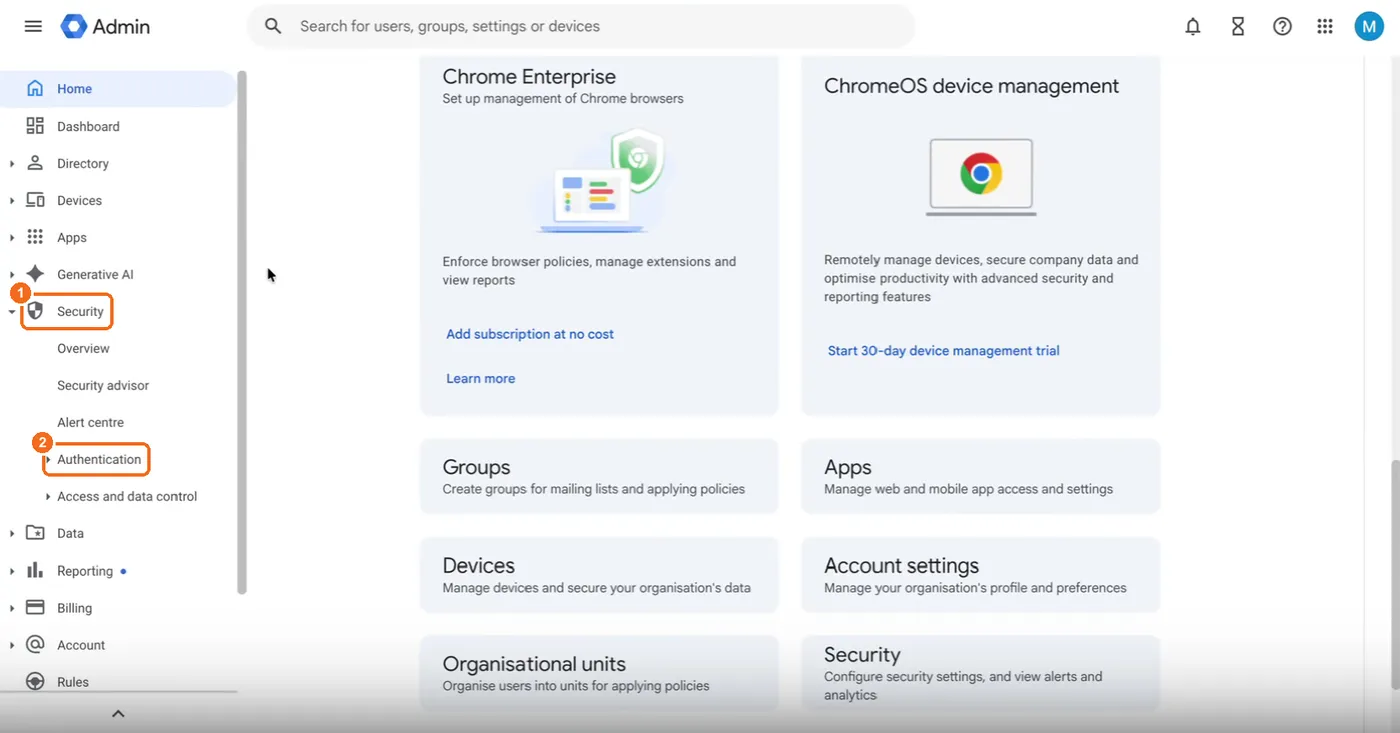

Sign in to admin.google.com as the super administrator. Go to Security > Authentication > SSO with third party IdP.

4

Open the legacy SSO profile

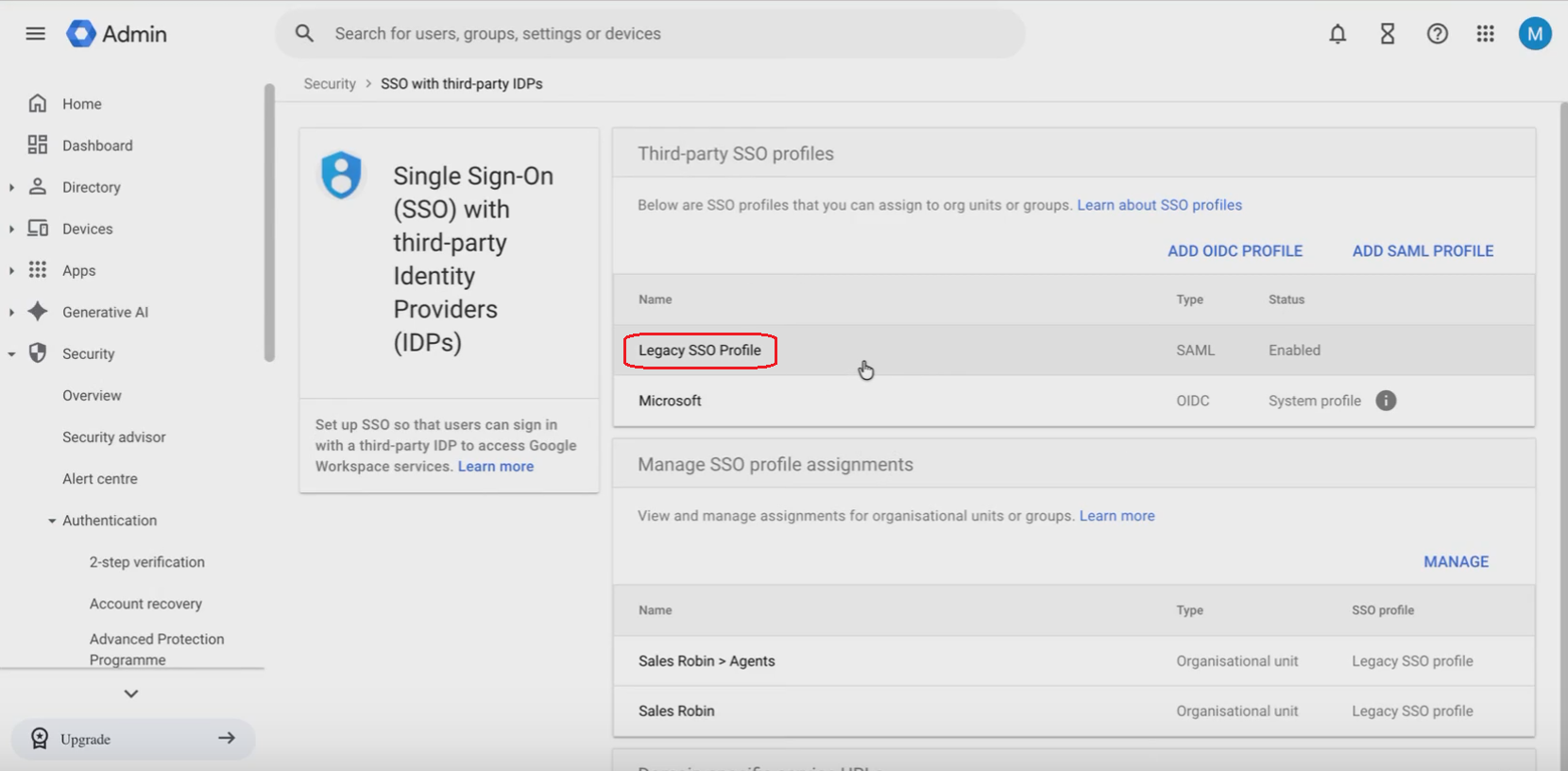

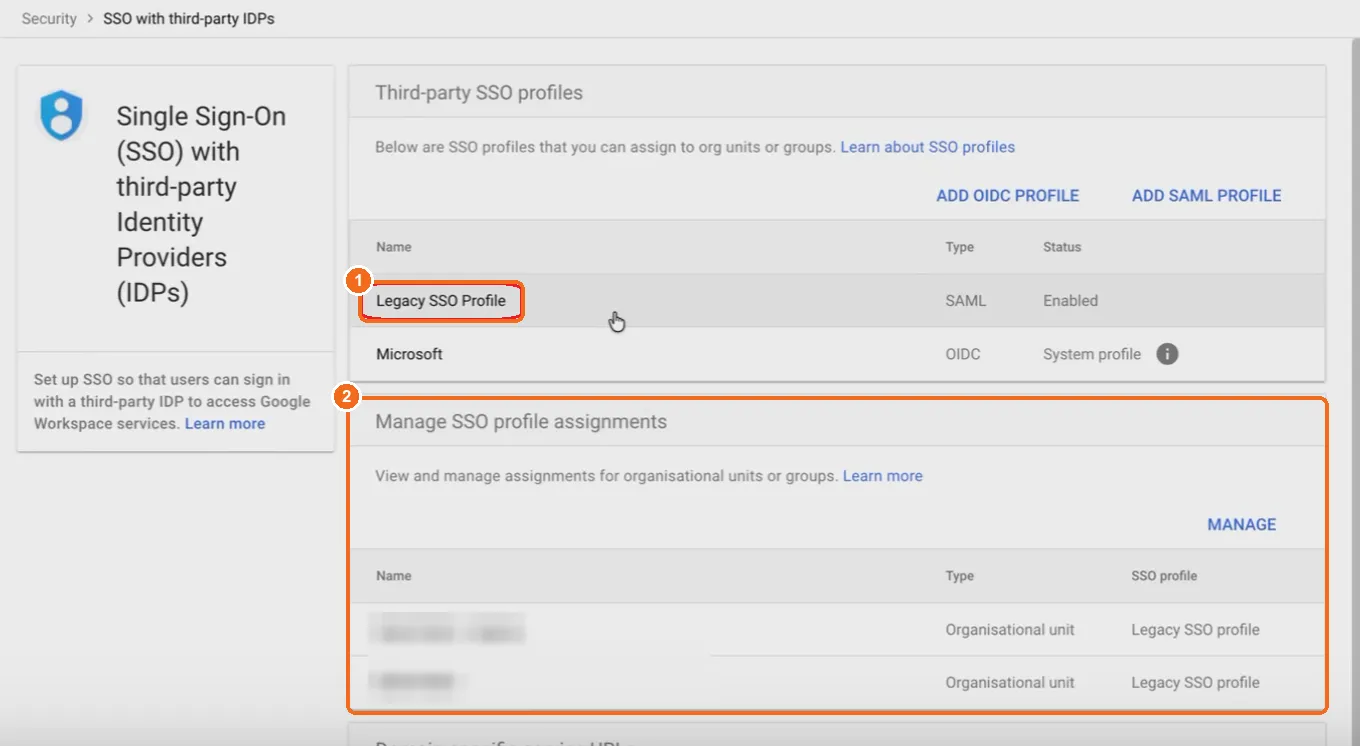

Under Third-party SSO profiles, click Legacy SSO Profile if it is listed. If it is not, click Add SAML profile, then at the bottom of the IdP details page click Go to legacy SSO profile settings (Google: set up SSO).

MeetStream supports the legacy SSO profile. Google’s console recommends newer SSO profiles; MeetStream sign-in is documented and tested with the legacy profile only.

5

Point the profile at MeetStream

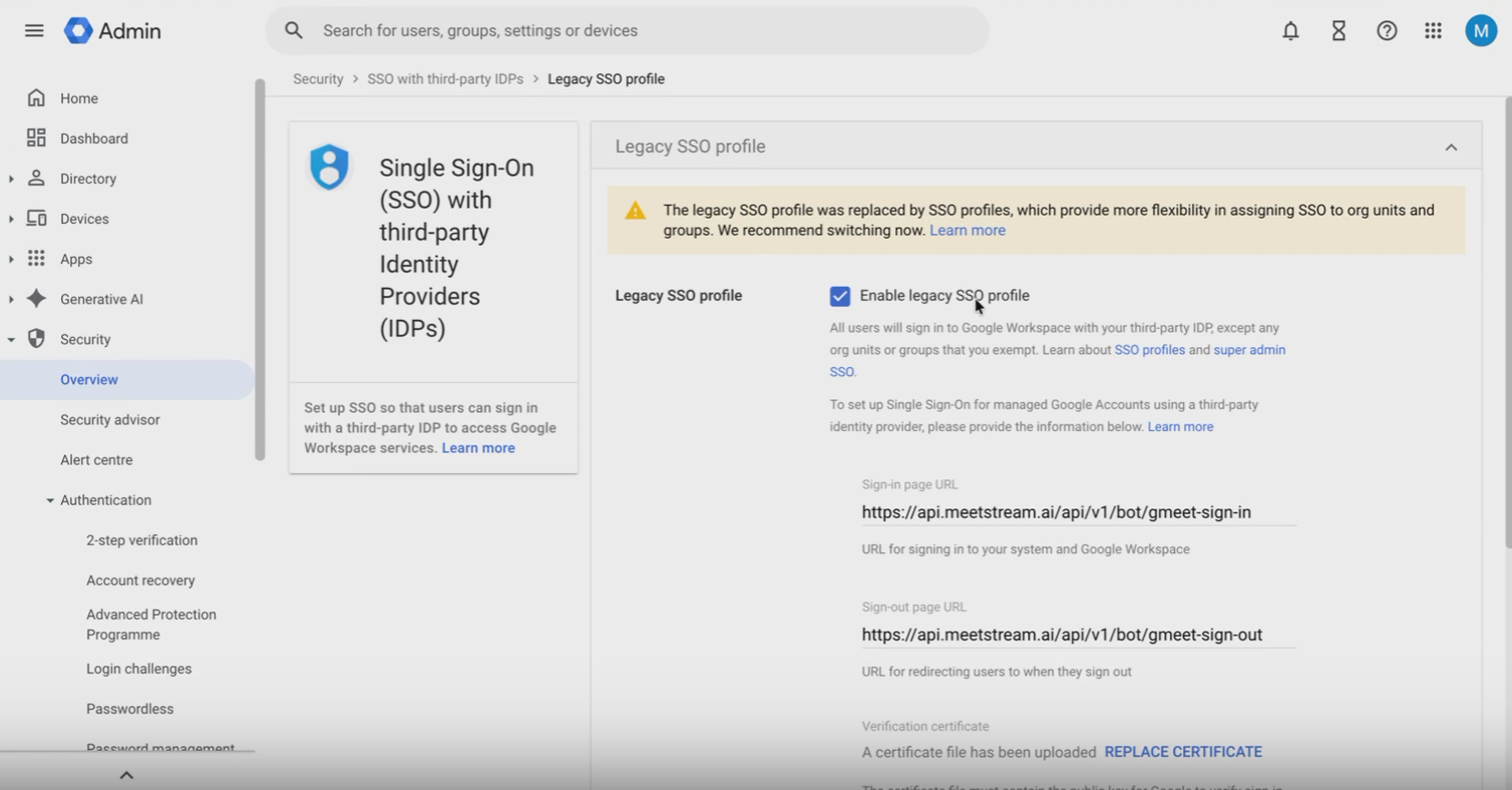

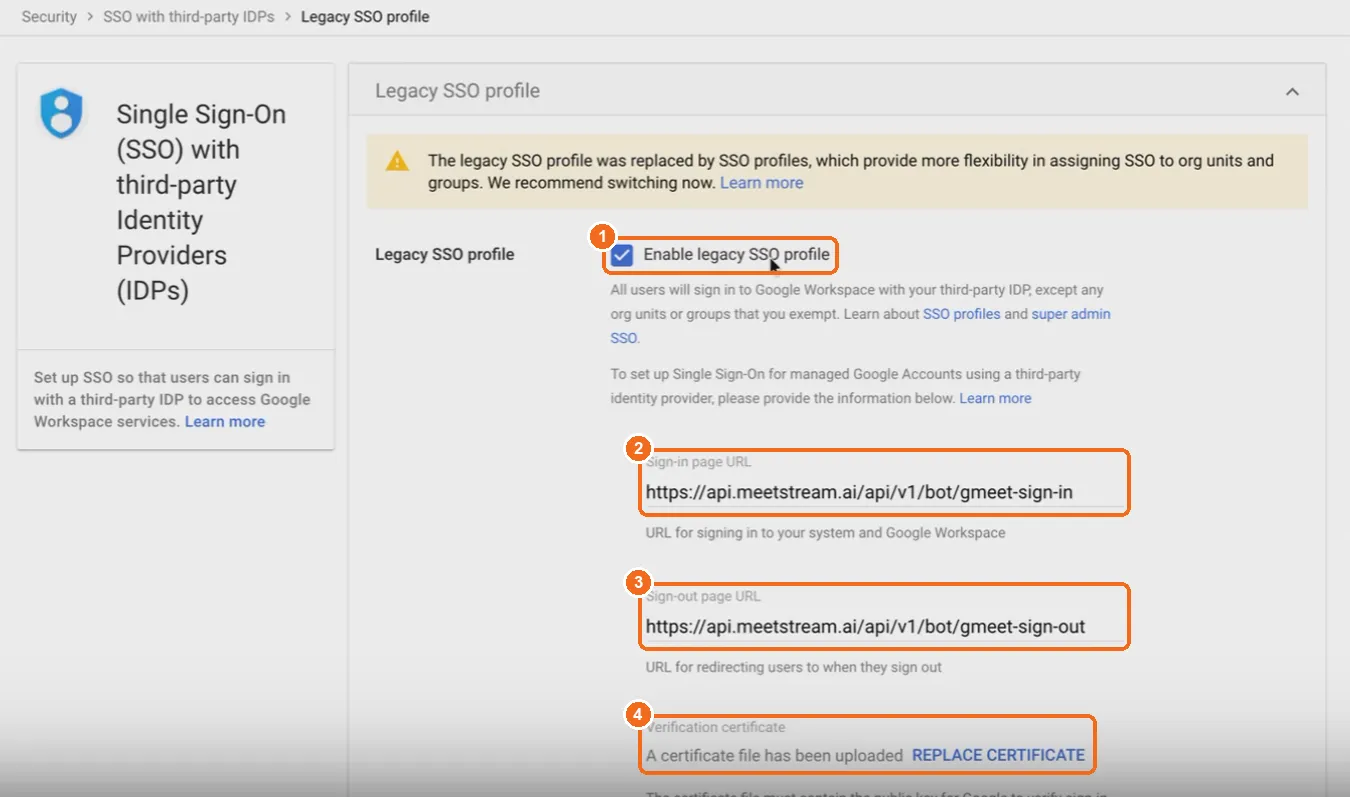

On the Legacy SSO profile page:

1. Check Enable legacy SSO profile. (Google’s help calls this box Enable SSO with third-party identity provider.)
2. Sign-in page URL:

   https://api.meetstream.ai/api/v1/bot/gmeet-sign-in
3. Sign-out page URL (Google requires a value):

   https://api.meetstream.ai/api/v1/bot/gmeet-sign-out

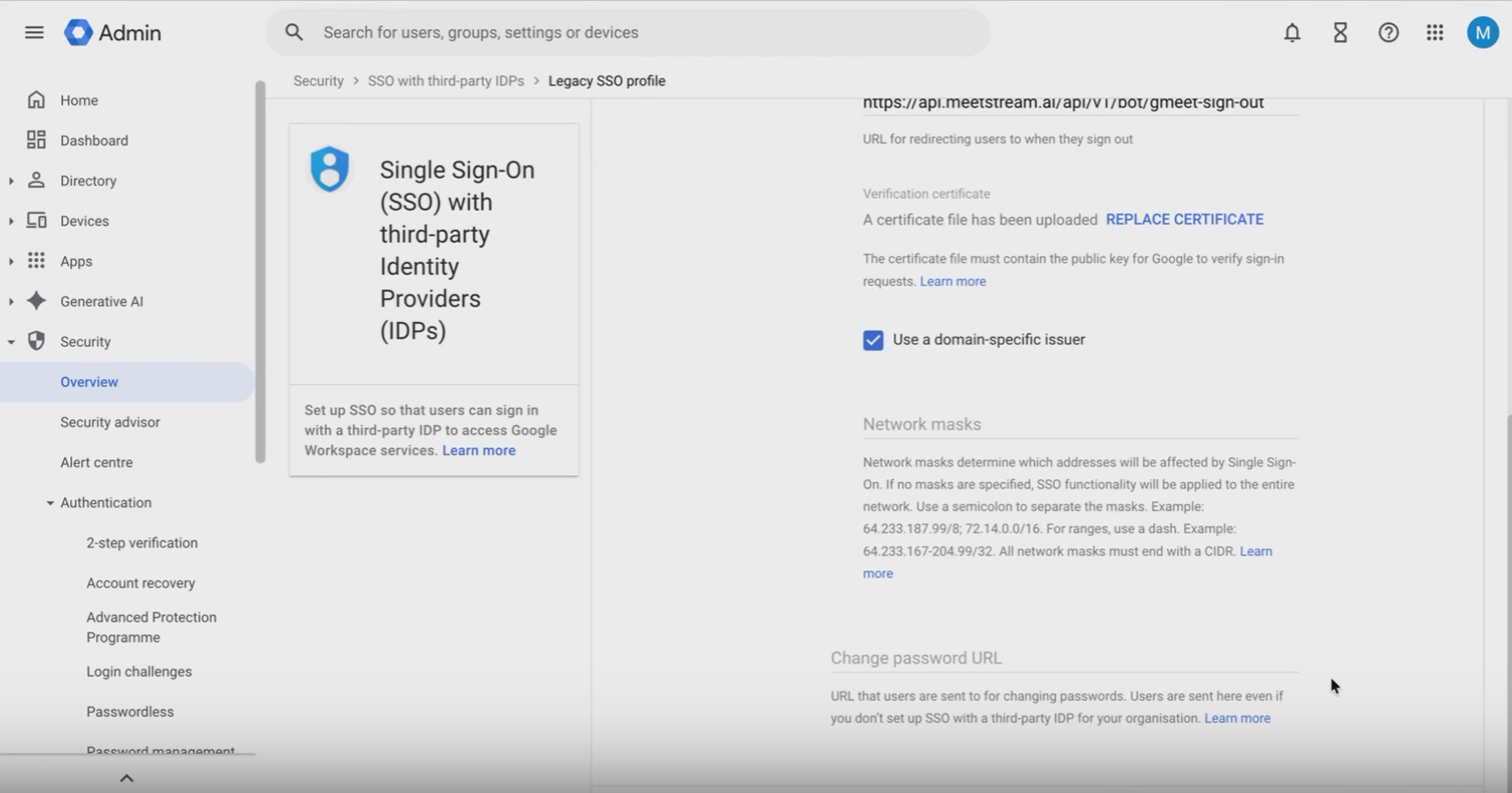

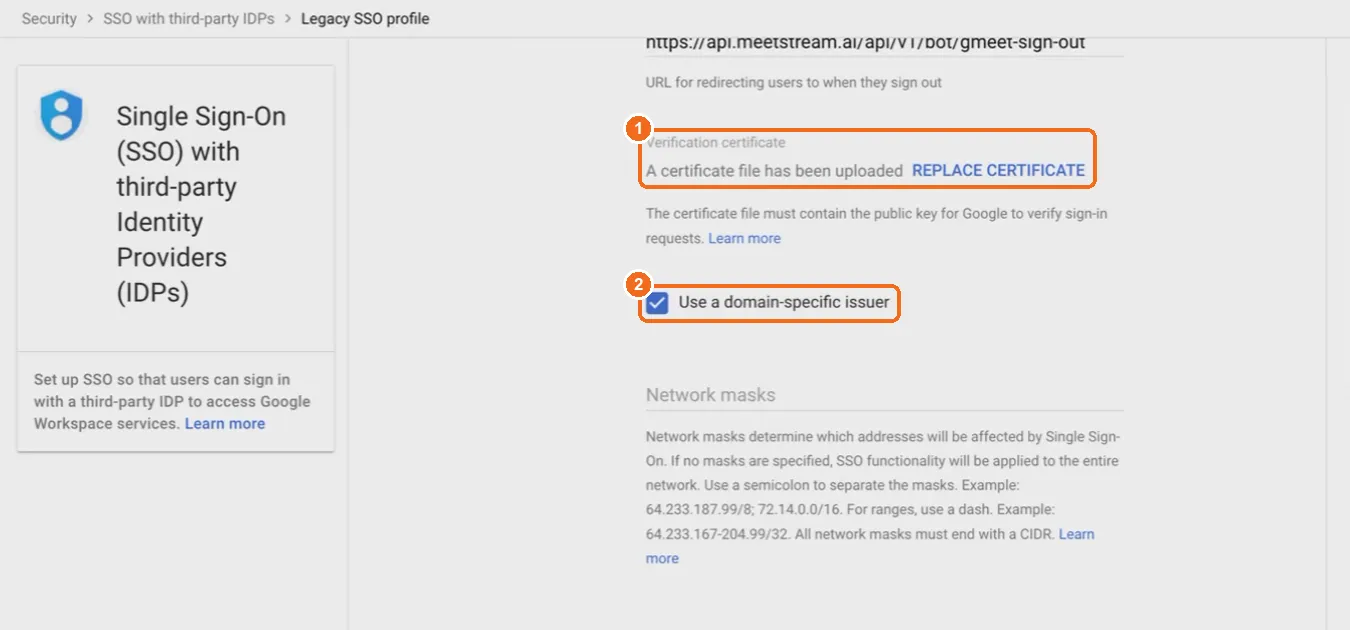

4. Verification certificate: upload cert.pem.
5. Check Use a domain-specific issuer. Google then identifies your domain in every sign-in request (as google.com/a/<your-domain>), which MeetStream uses to match the request to your logins.
6. Click Save.

6

Assign the profile to the bot accounts

Back on SSO with third party IdP, click Manage SSO profile assignments, then Get started (first time) or Manage assignments. Select the organizational unit or group that contains the bot accounts and assign the Legacy SSO profile to it. Click Save.

In a Workspace that only holds bots, assigning it to the top-level organizational unit is simplest. Google may take a little while to apply the change.

Part 2: Register the domain and logins in MeetStream

1

Open Signed Bots

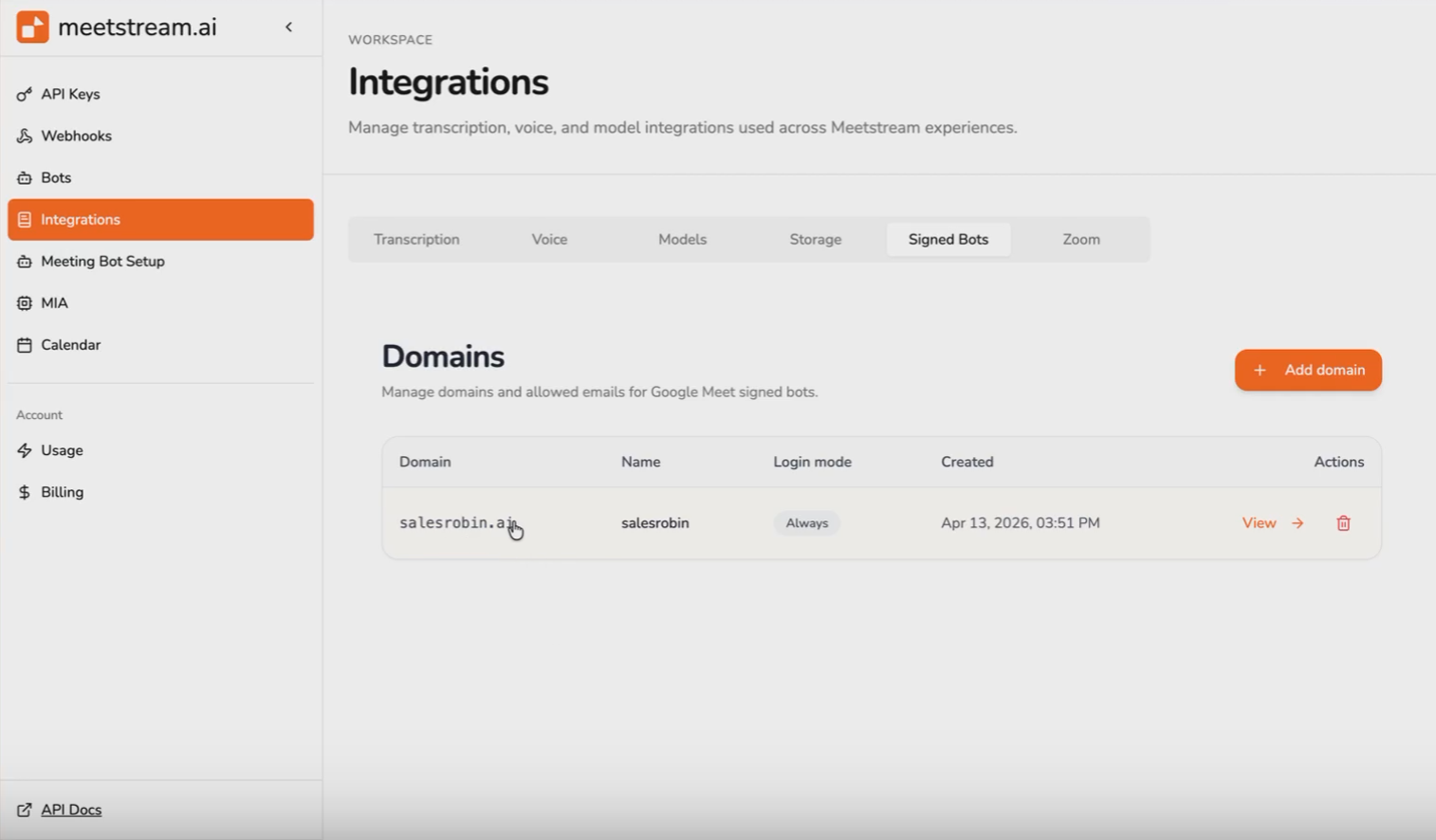

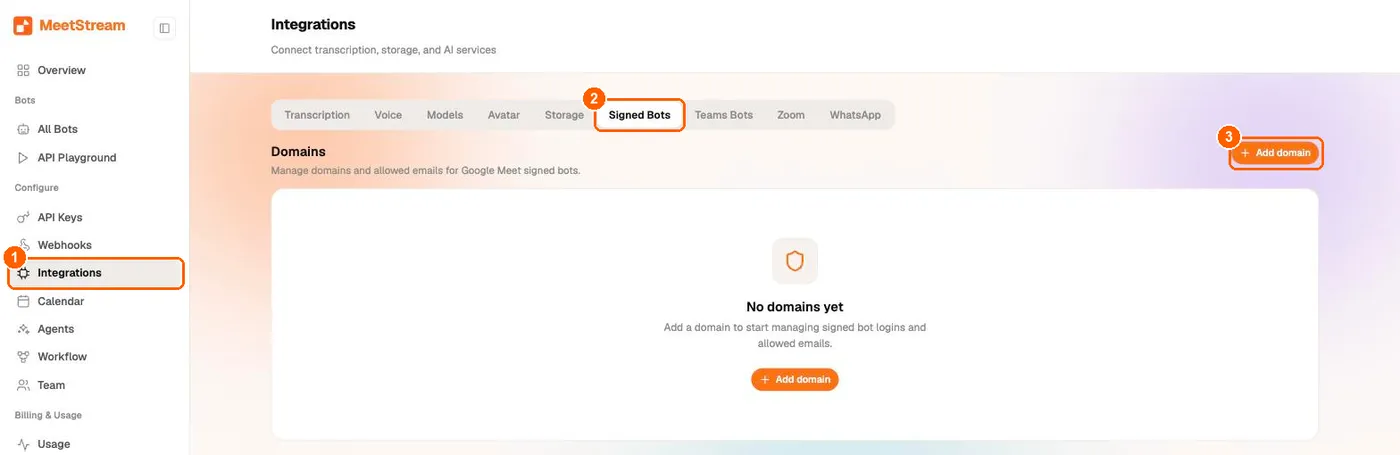

In the MeetStream dashboard, go to Integrations > Signed Bots and click Add domain.

2

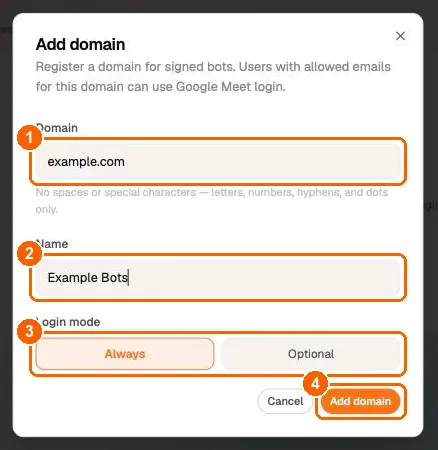

Add your bot domain

• Domain (1): the bot Workspace domain, exactly as it appears after the @ in the bot emails, in lowercase (for example example.com). You will send the same value as google_login_domain.
• Name (2): any label you like.
• Login mode (3): leave Always. See Login mode.
• Click Add domain (4).

A domain can be registered by one MeetStream account only. Registering it again returns HTTP 409 Domain <domain> already registered.

3

Add each bot account and upload the key pair

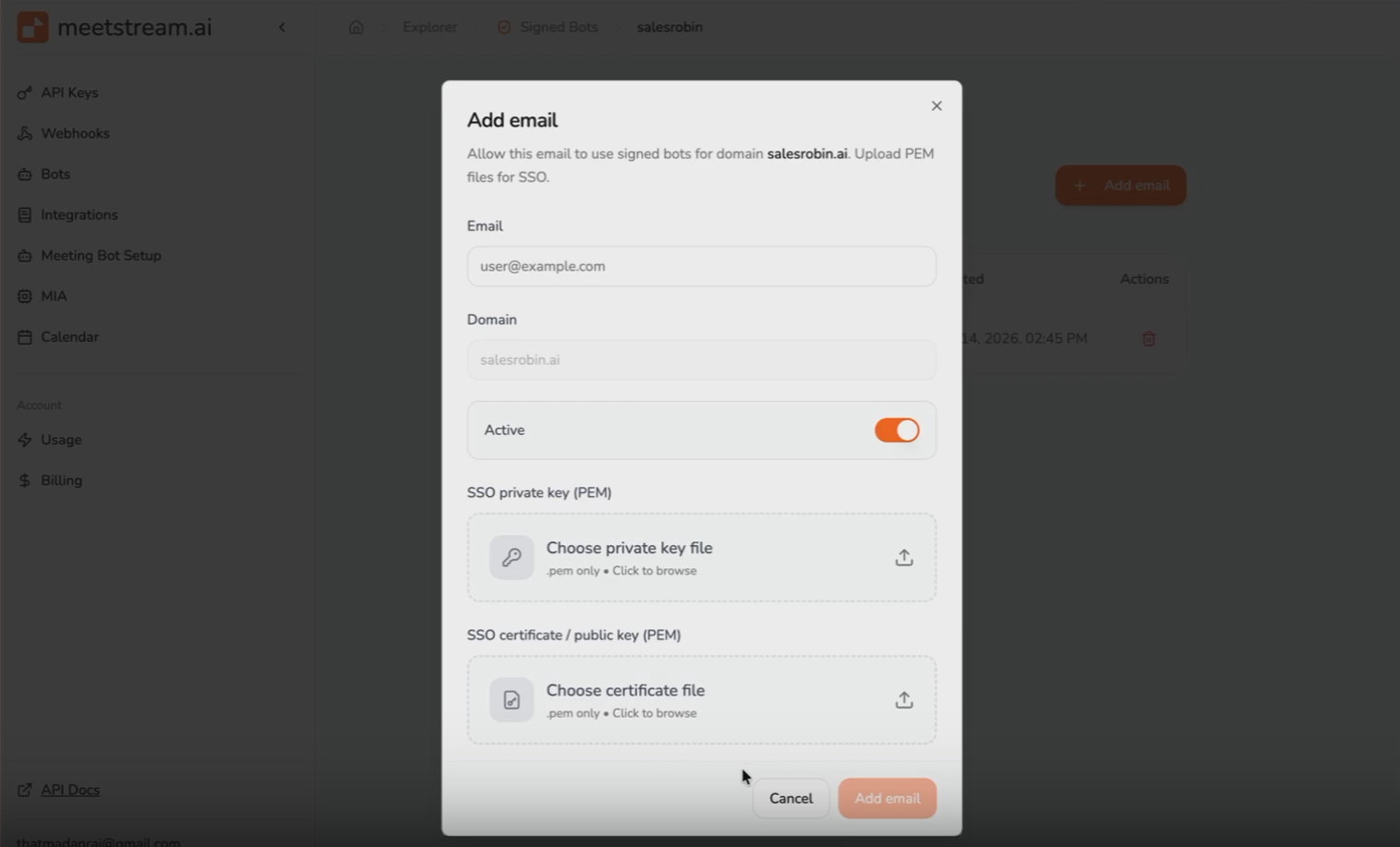

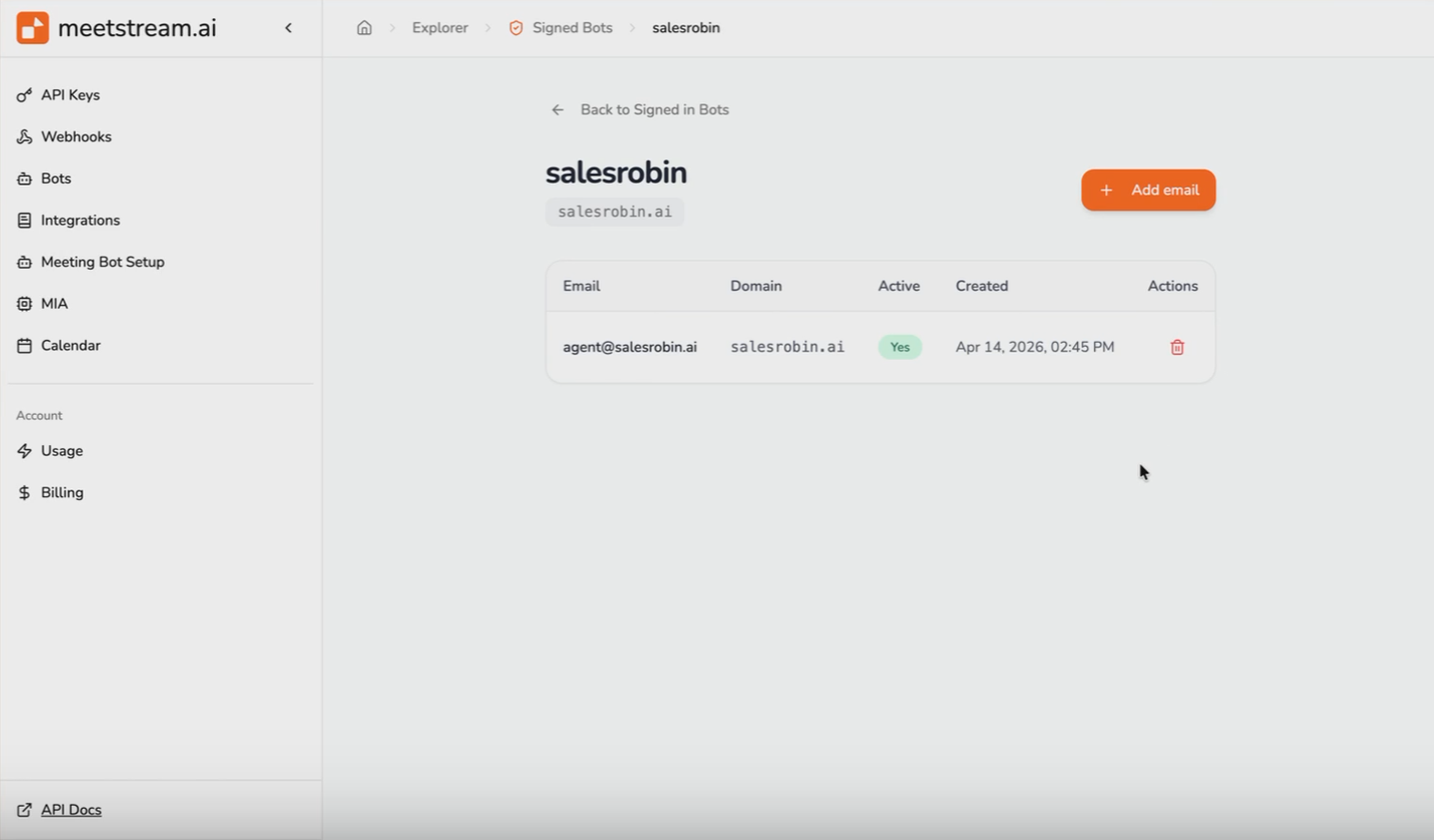

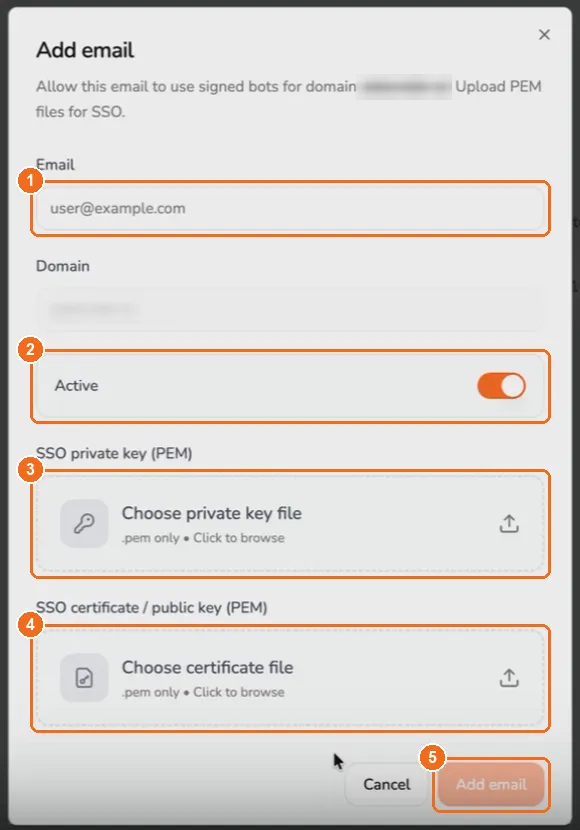

Open the domain (click its row or View), then click Add email. For every bot account:

1. Email: the bot account, for example notetaker@example.com.
2. Active: leave on. Only active logins are used.
3. SSO private key (PEM): upload key.pem.
4. SSO certificate / public key (PEM): upload cert.pem.
5. Click Add email.

Upload the same key.pem and cert.pem for every email in the domain.

Or use the API

The same setup is available with your API key (Google Signed-In Bots endpoints):

# Register the domain
curl -X POST "https://api.meetstream.ai/api/v1/google-login-domains" \
  -H "Authorization: Token <YOUR_API_KEY>" \
  -H "Content-Type: application/json" \
  -d '{"sso_workspace_domain": "example.com", "name": "Example Bots", "login_mode": "always"}'
# Add a login (PEM contents as strings, newlines escaped as \n)
curl -X POST "https://api.meetstream.ai/api/v1/google-logins" \
  -H "Authorization: Token <YOUR_API_KEY>" \
  -H "Content-Type: application/json" \
  -d '{
    "domain": "example.com",
    "email": "notetaker@example.com",
    "sso_private_key_pem": "-----BEGIN PRIVATE KEY-----\n...\n-----END PRIVATE KEY-----",
    "sso_cert_pem": "-----BEGIN CERTIFICATE-----\n...\n-----END CERTIFICATE-----",
    "is_active": true
  }'

Part 3: Send a signed-in bot

Add a google_meet block to Create Bot:

{
  "meeting_link": "https://meet.google.com/abc-defg-hij",
  "bot_name": "Notetaker",
  "video_required": false,
  "bot_message": "Hi everyone, I'm taking notes for this meeting.",
  "bot_image_url": "https://example.com/bot-avatar.png",
  "google_meet": {
    "login_required": true,
    "google_login_domain": "example.com",
    "sign_in_email": "notetaker@example.com",
    "strict_email": true
  },
  "callback_url": "https://example.com/webhooks/meetstream",
  "custom_attributes": {
    "customer_id": "cus_123"
  },
  "automatic_leave": {
    "waiting_room_timeout": 300,
    "everyone_left_timeout": 120
  }
}

Request fields

The google_meet block is only accepted for Google Meet links. With a signed-in bot, bot_name is not shown in Meet (the Google account’s name is), but bot_image_url is still used as the bot’s camera image.

How MeetStream picks a login

1. Only logins marked Active are candidates.
2. If you set sign_in_email, that login is used when it has room. Otherwise the request fails (strict_email: true) or falls back to step 3 (strict_email: false).
3. Otherwise MeetStream picks the login with the fewest bots currently joining or in a meeting.
4. Each login carries up to 30 bots at the same time.

For scheduled bots, the login is picked when the bot is about to join, not when you schedule it.

How many logins you need

logins = peak concurrent signed-in Meet bots / 30, rounded up

30 is the hard ceiling per login, so add headroom. Planning on 20 bots per login leaves room for spikes. For example, a peak of 100 concurrent signed-in bots needs at least 4 logins; 5 is safer.

Errors when creating the bot

Errors return a JSON body of the form {"message": "..."}.

A 429 here means “no login is free right now”. Retry after bots finish, add logins, or drop strict_email.

If sign-in fails, the bot does not join as a guest

A signed-in bot never falls back to guest mode. If Google sign-in does not complete, the bot stops before opening the meeting:

See Troubleshooting for what to check.

What participants see

• The Google account’s name and photo. Change them on the account in Google Admin.
• The bot’s camera tile shows your bot_image_url.
• Status webhooks for signed-in bots include profile_image_url (the account’s photo) when available.

Skip the lobby with the calendar invite

Add the bot account’s exact email as a guest on the Google Calendar event, and send the bot with sign_in_email set to that address (keep strict_email: true). Meet then treats the bot as an invited participant:

• Open and Trusted or Restricted meetings: the invited bot joins directly.
• Waiting room on: the bot waits like everyone else until a host brings it in.

The full admission matrix is on the Google Meet page.

Login mode

The Login mode on a domain (Always or Optional in the dashboard, always or if_required in the API) is saved with the domain but does not change Google Meet bots today. A bot signs in exactly when its request sets google_meet.login_required: true, and joins as a guest otherwise. Choose Always.
